- Large Replacement Sandblaster Nozzle Assembly: Included is a large ceramic nozzle, nozzle holder and a 3/4" stainless steel N.P.T. ball valve for long-lasting life. Replace your existing nozzle holder with this system utilizing large 3-3/4" nozzles!
- Outlasts Small Nozzles Several Times: Industrial Grade system can be used for larger pressure pot sandblasting systems or to convert smaller garage style pot systems such as Clarke and Harbor Freight.
- Aluminum Oxide Ceramic Tip: Our secret to longer blasting times is through the use of the included alumina oxide tip which measures 3-3/4" (95.3mm) long which provides more material to wear through. Our long lasting tips are higher-density, that outlast several times longer.
- Quality Performance: All ceramic nozzles are not equal -- Kennametal nozzles feature dense material. We offer replacement C1 tips also when the time comes to need another.
- Kennametal Quality & Usa Assembled: These sandblaster nozzles are professionally assembled by SandblasterInfo and ceramic tip included is manufactured by one of the highest respected U.S.A companies providing unsurpassed wear resistance in abrasion.

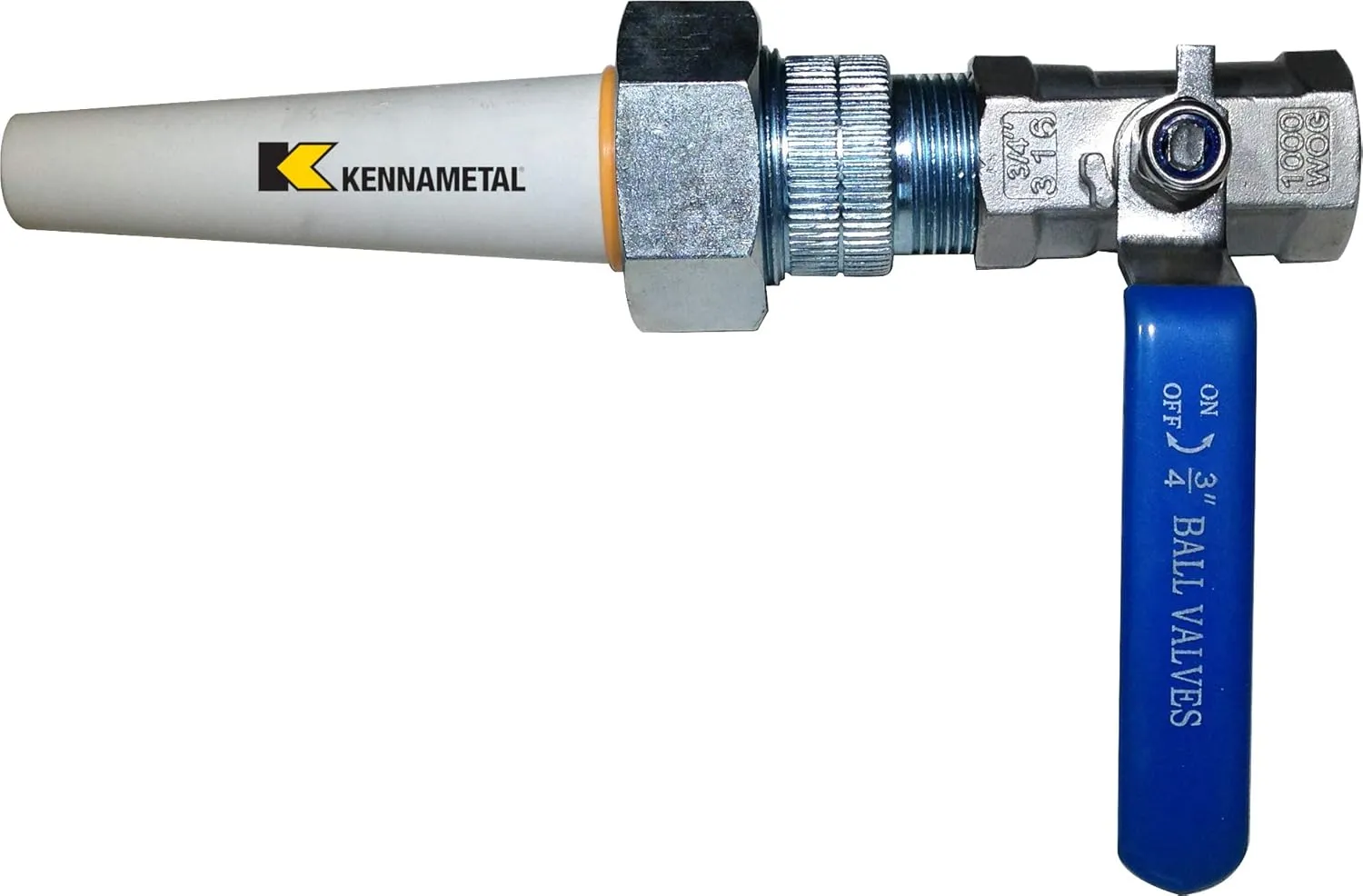

Large, Heavy Duty Sandblasting Nozzle with Tip, Ball Valve & Nozzle Holder
Rest at ease knowing that you will not have to change your nozzle system as often, which in turn saves you money in the long run. Our high quality nozzle is assembled with larger parts for higher volume abrasive blasting.
However, if you have a smaller garage style pressure pot sandblaster, you can take advantage of the long lasting effects of the large, long length ceramic nozzle tip. Simply select a smaller Inner Diameter (I.D.) to reduce the volume of abrasive coming out. This is a great solution for converting your Harbor Freight, Clarke or other garage-sized blaster into a better system with this long-lasting nozzle.
Forget Brass Ball Valves!
Unlike other systems utilizing soft, brass ball valves, ours uses full stainless steel construction for longer life.
C1 Series Ceramic Nozzles Provide Great Wear-Resistance!
Included is a premium Usa-Made ceramic sandblaster nozzles that last longer than others.
C1 Series Nozzles Measure 3.75 inches long. Width measures 1.125" in outer diameter tapered to .63" at tip end.
Select Inner Diameter Bore from Smallest to Largest:
3/32" I.D. (2.4 mm)
1/8" I.D. (3.2 mm)
5/32" I.D. (4 mm)
3/16" I.D. (4.8 mm)
1/4" I.D. (6.4 mm)
5/16" I.D. (7.9 mm)
3/8" I.D. (9.5 mm)
Note: Pictures only show the one I.D. bore but we offer all seven sizes.
Reduce Nozzle Replacement Costs
Kennametal's nozzle replacements may cost more initially, but provide much longer service life.

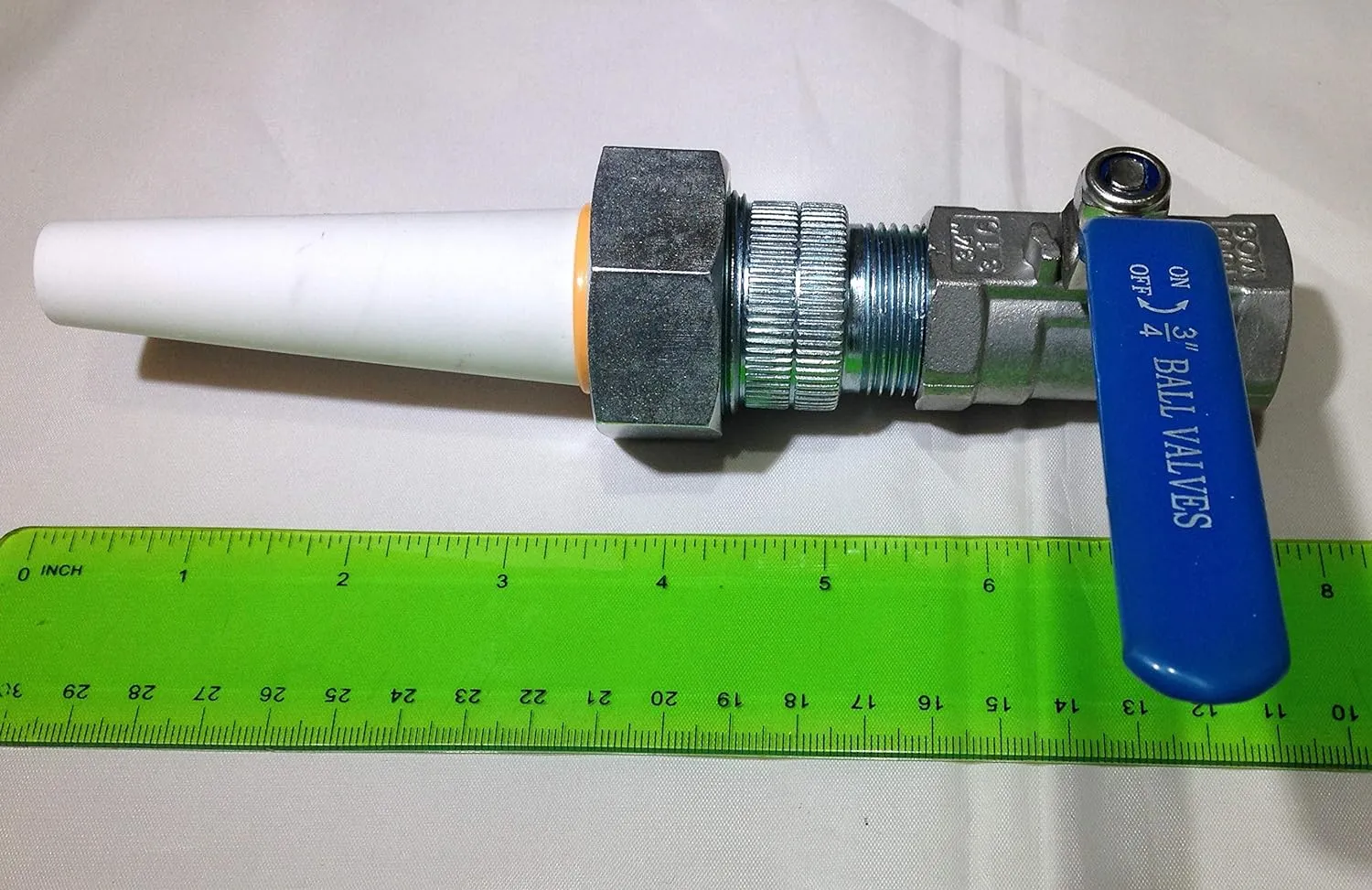

Overall Size of Abrasive Blasting Assembly
The whole assembly measures roughly 7.75" long. Uses 3/4" N.P.T. ball valve which can be converted for use on all size pressurized blasters with the use of a reducer which can be found at local hardware stores. Most Harbor Freight systems use a 3/8" N.P.T. so a reducer 3/4" N.P.T. to 3/8" N.P.T. may be needed. Please contact us if you need a reducer.
